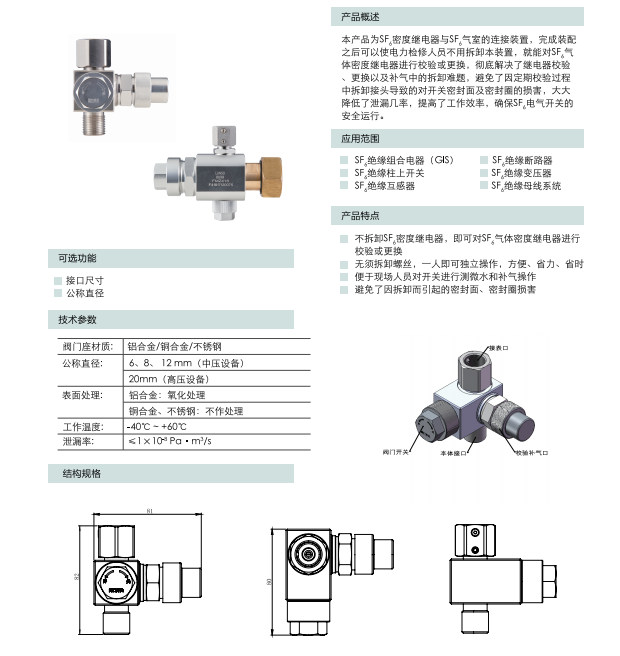

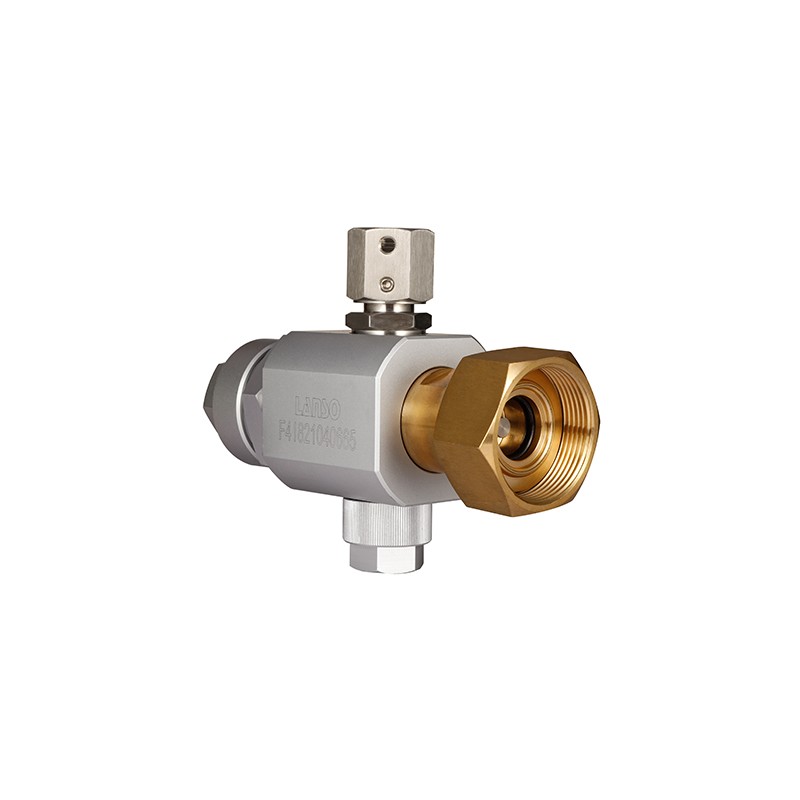

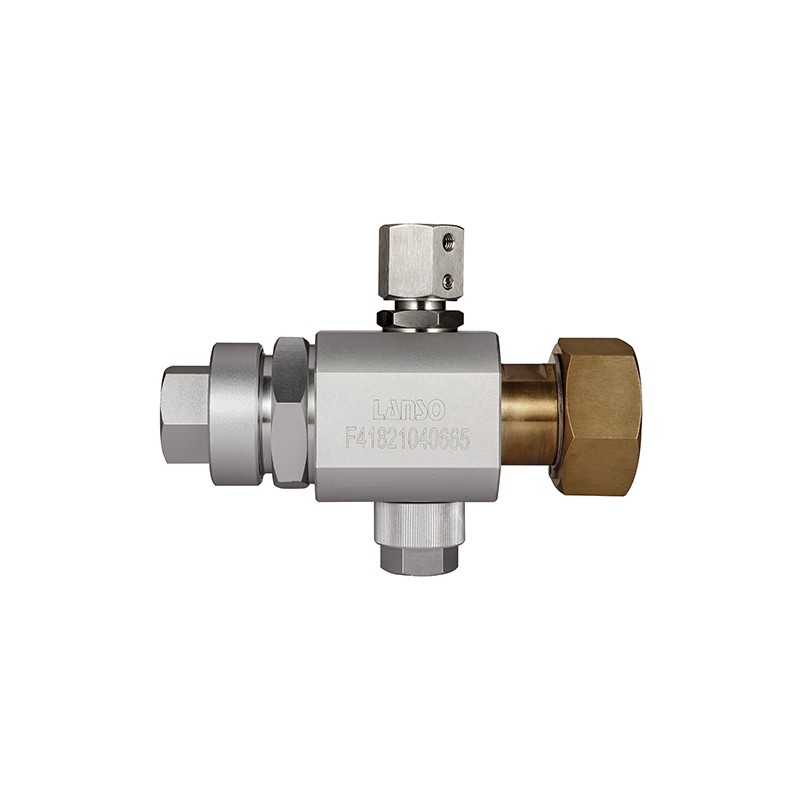

FMZ型SF6气体阀门
产品介绍：
一.产品描述
本产品为SF6密度继电器与SF6气室的连接装置，完成装配之后可以使电力检修人员不用拆卸本装置，就能对SF6气体密度继电器进行校验或更换，彻底解决了继电器校验、更换以及补气中的拆卸难题，避免了因定期校验过程中拆卸接头导致的对开关密封面及密封圈的损害，大大降低了泄漏几率，提高了工作效率，确保SF6电气开关的安全运行。
二.产品应用
SF6绝缘组合电器（GIS）
SF6绝缘断路器
SF6绝缘柱上开关
SF6绝缘变压器
SF6绝缘互感器
SF6绝缘母线系统
SF6绝缘充气柜
SF6绝缘环网柜
三.产品特性
1.不拆卸SF6密度继电器，即可对SF6气体密度继电器进行校验或更换
2.无须拆卸螺丝，一人即可独立操作，方便、省力、省时
3.便于现场人员对开关进行测微水和补气操作
4.避免了因拆卸而引起的密封面、密封圈损害
四.技术数据
1.阀门座材质：铝合金/铜合金/不锈钢
2.公称直径：6、8、 12 mm（中压设备）
20mm（高压设备）
3.表面处理： 铝合金：氧化处理
铜合金、不锈钢：不作处理
4.工作温度： -40°C ~ +60°C
5.泄漏率：≤1×10-8Pa·m3/s
五选项

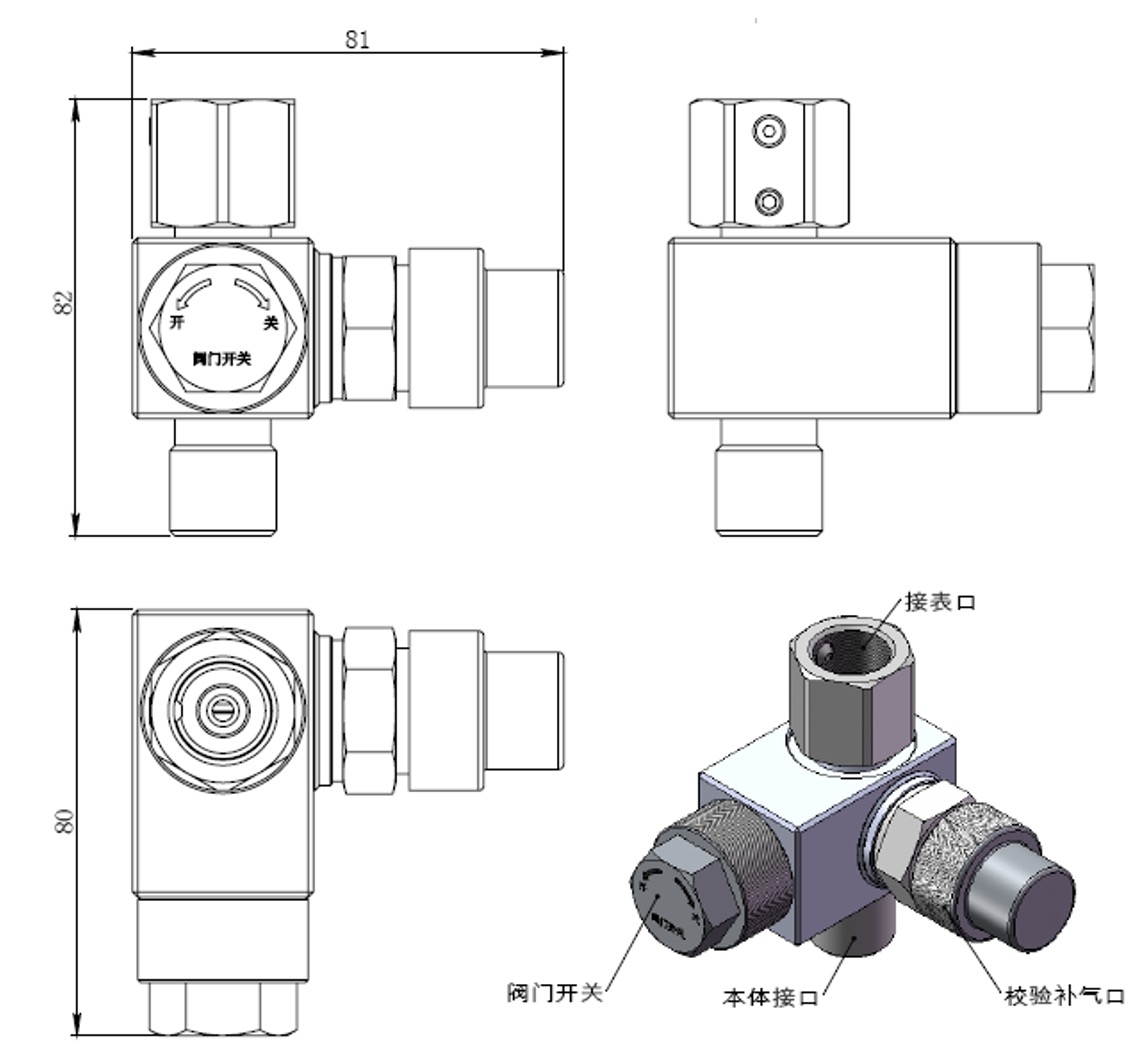

接口尺寸
公称直径
>Description
This product is a device to connect SF5 density monitor with SF6 gas chamber. After the completion of the assembly, the electrical maintenance personnel can make SF5 gas density monitor calibration or replacement without disassembling the unit, solving the disassembling difficulty in monitor check, replacement and gas supplementation, avoiding the damage to switch sealing surface and sealing joints caused by disassembling joints in periodic veri币cation process, greatly reducing the chance of leakage, improving work efficiency and ensuring the safe operation of SF5 electrical switches.
>Application
SF6 Gas Insulated Switchgear (GIS)
SF6 Insulated circuit breakers
SF5 Insulated pole-mounted switch
SF5 Insulated transformer
SF6 Insulated mutual inductor
SF5 Gas insulated busbar systems
SF5 Insulated inflatable cabinet
SF5 Insulated RMU
>Features
1. Without disassembling SF5 density monitor, SF5 gas density monitor can be calibrated or replaced
2. Without disassembling the screws, a person can operate independently, which is convenient, saving effort and time
3. It can facilitate on-site personnel to measure micro-water and supplement air for switch
4. Avoid the sealing surface and sealing joint damage caused by the disassembling
>Options
1. Interface size: customizable
2. Nominal diameter: customizable
