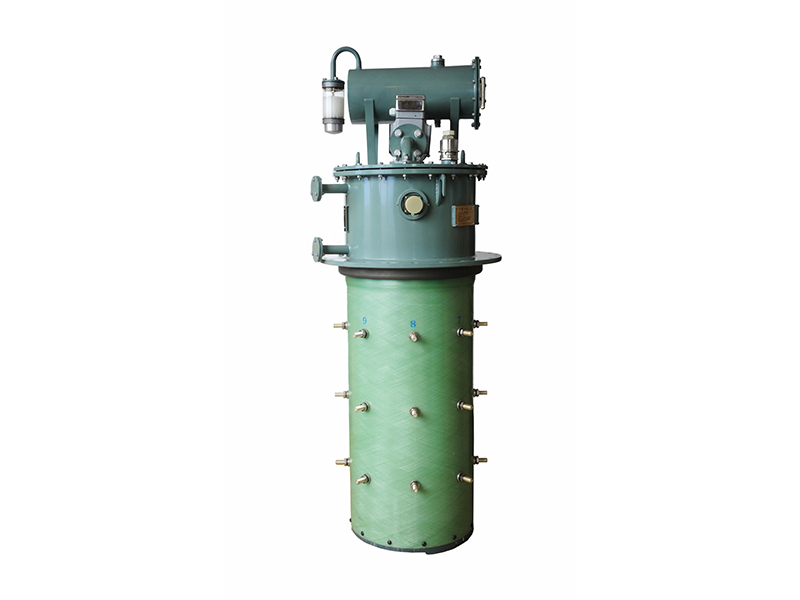

F系列有载分接开关
F Series on-load Tap-changer
有载分接开关.具有结构先进，动作可靠，使用寿命长，维护方便等优点，适用与50Hz，设备最高电压在40.5kV及以下额定电流在400A及以下的三相油浸式变压器。
This kind of on-load tap-changer has the merits of advanced structure, operating reliably, long useful life and maintenance freely, It is suitable for oil-immersed three-phases transformer with frequency 50Hz, Highest voltage for equipment 40.5KV and below and rated current under 400A and below.

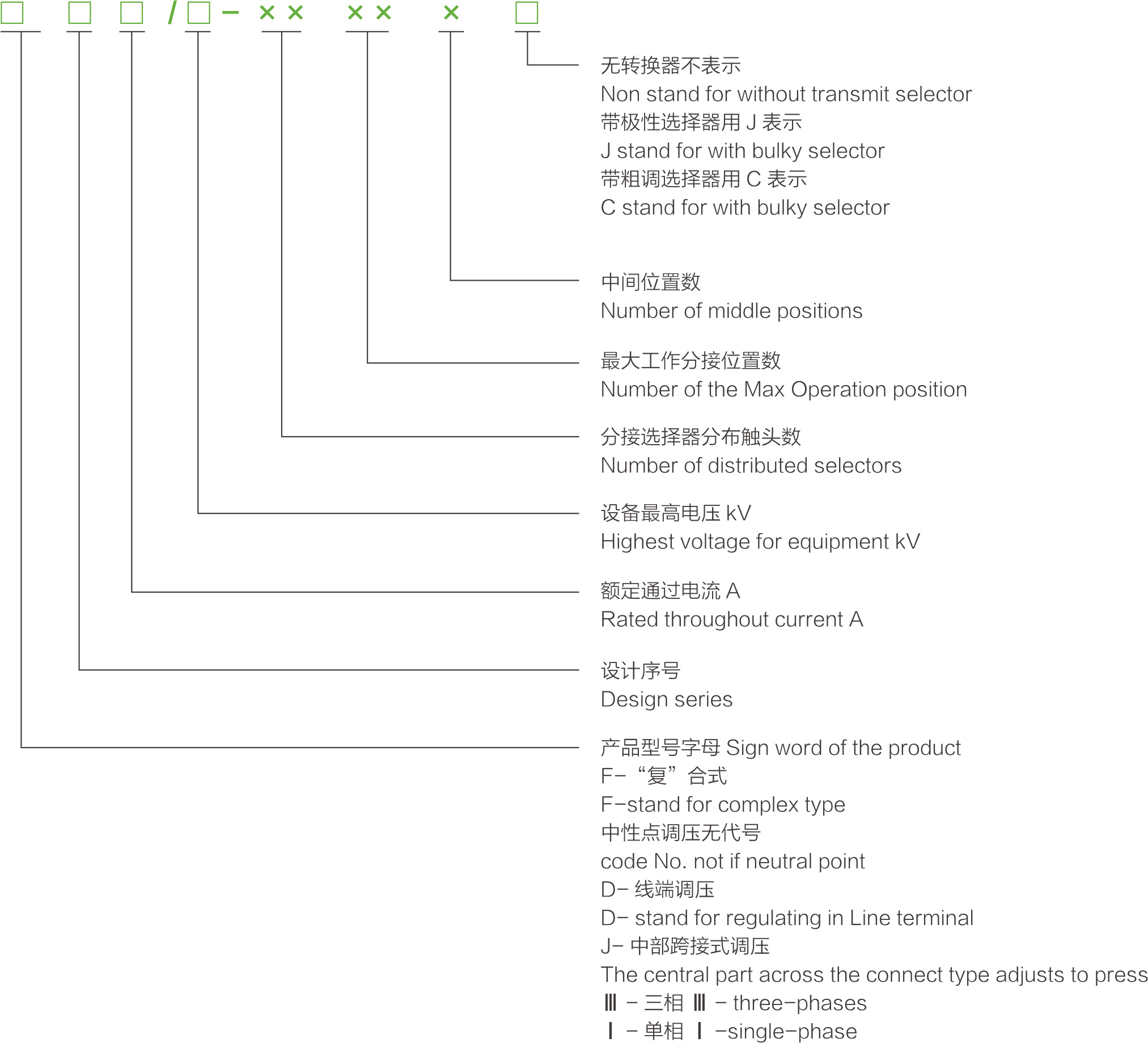

有载分接开关型号含义
Type of on-load tap-changer

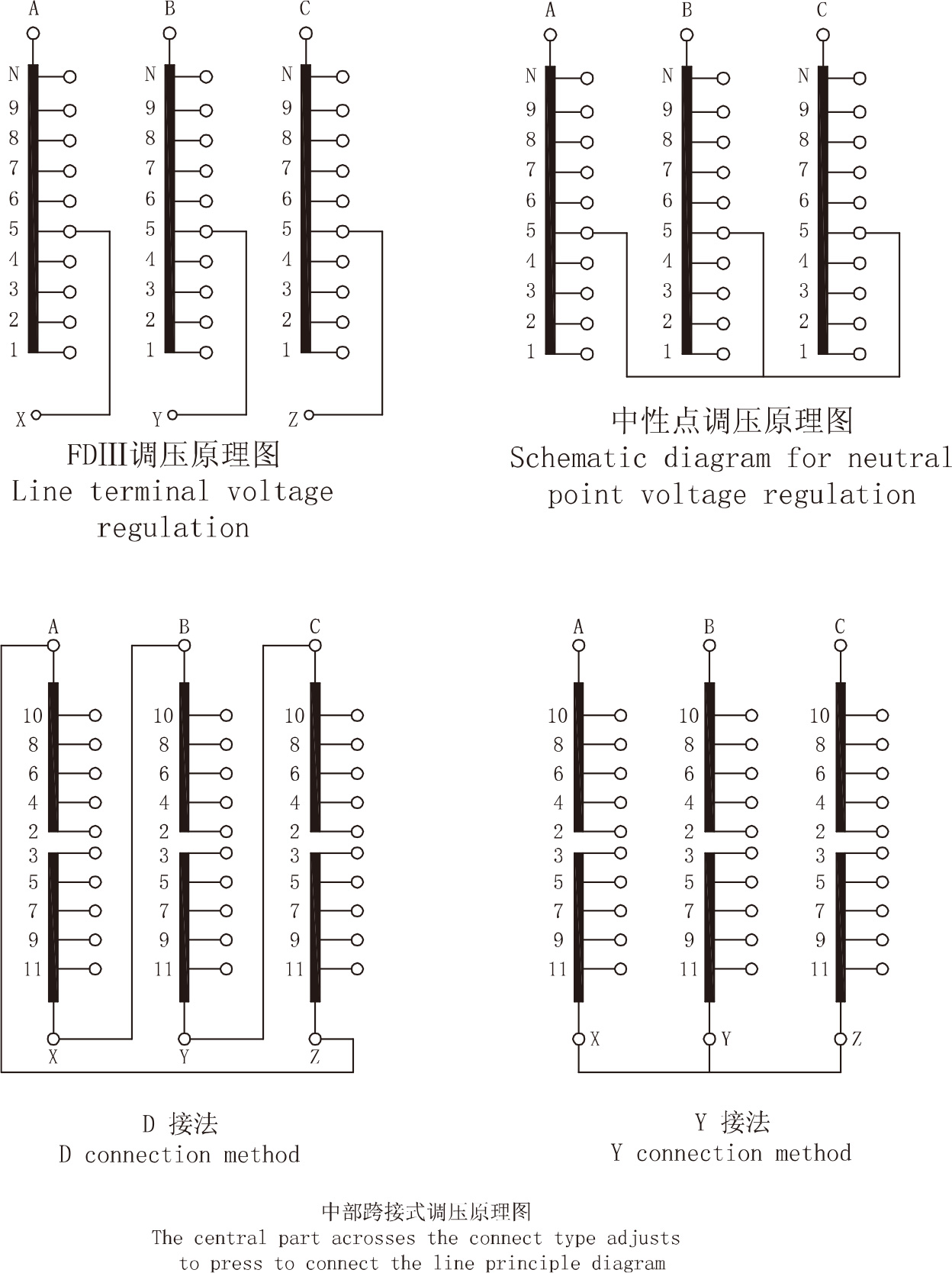

有载分接开关调压原理图
On-load tap-changer schematic diagram for voltage regulation

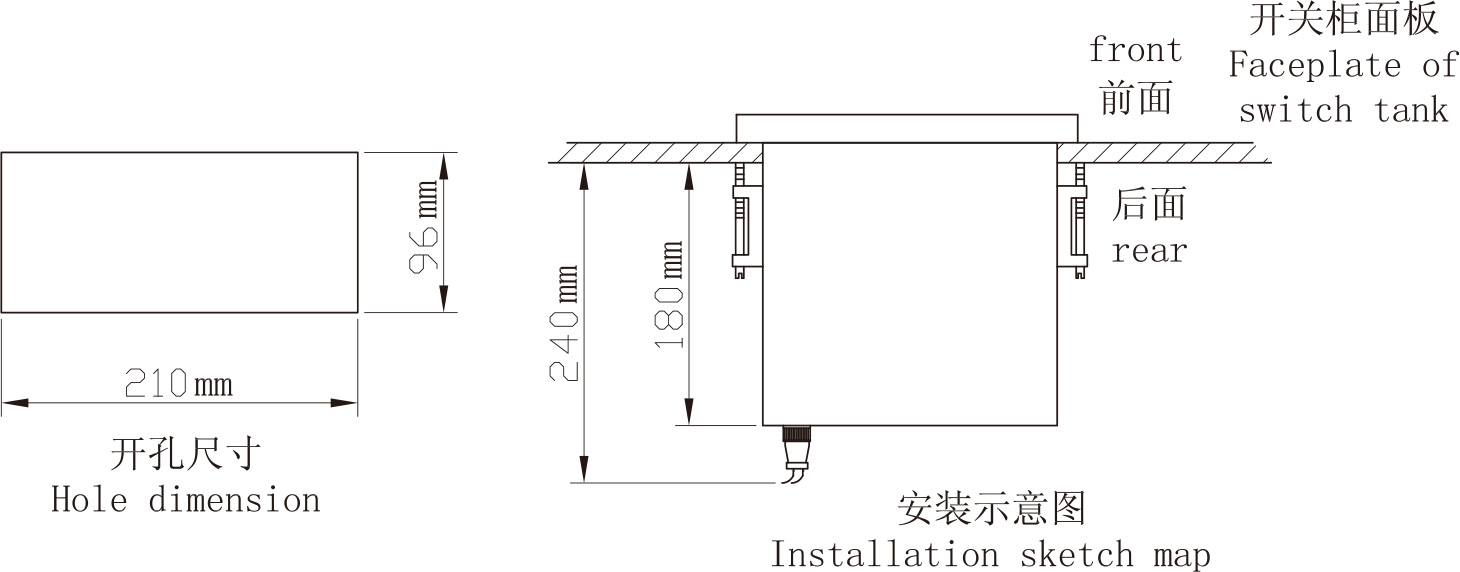

有载分接开关控制器安装尺寸
On-load tap-changer controller installation size

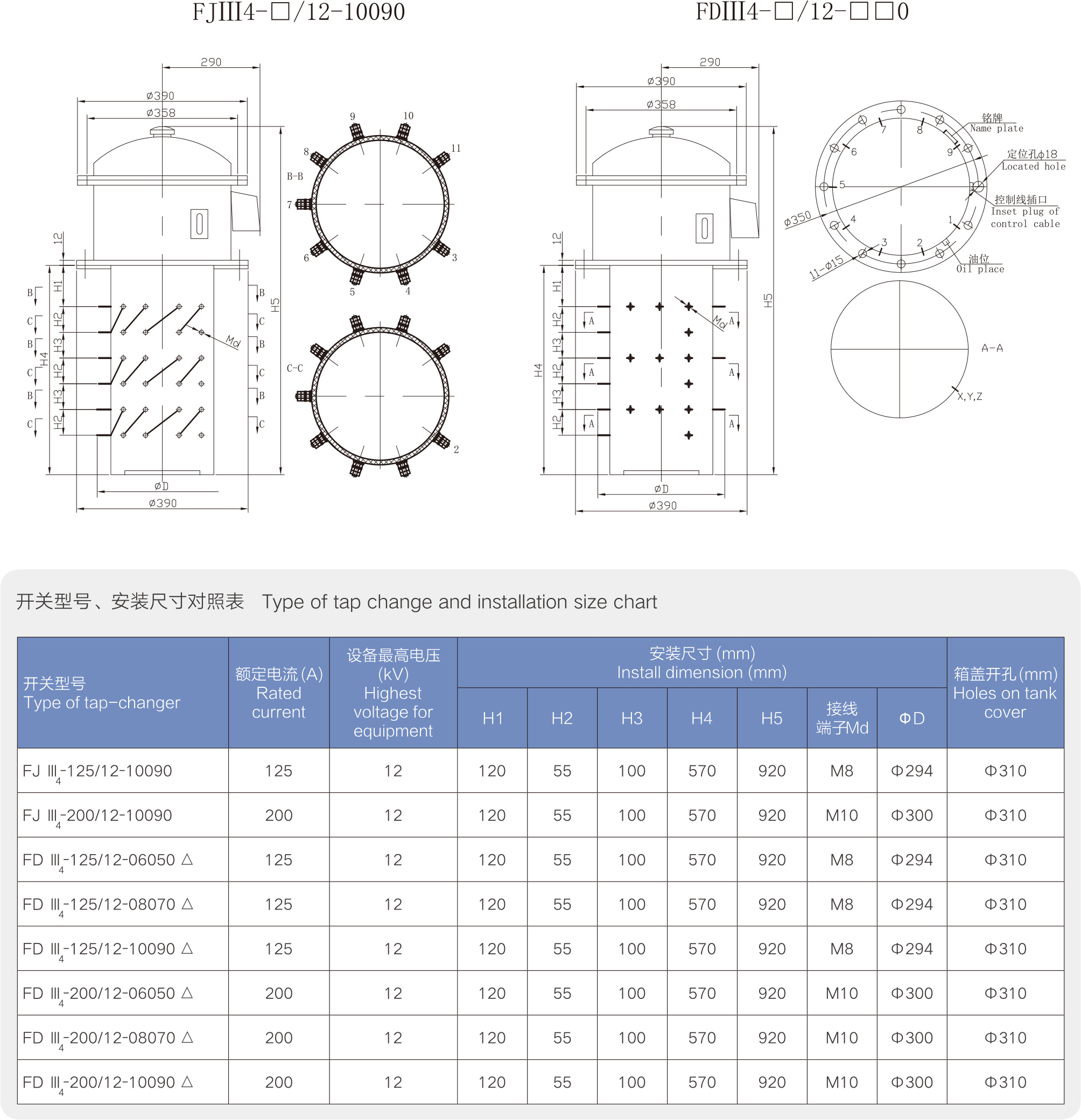

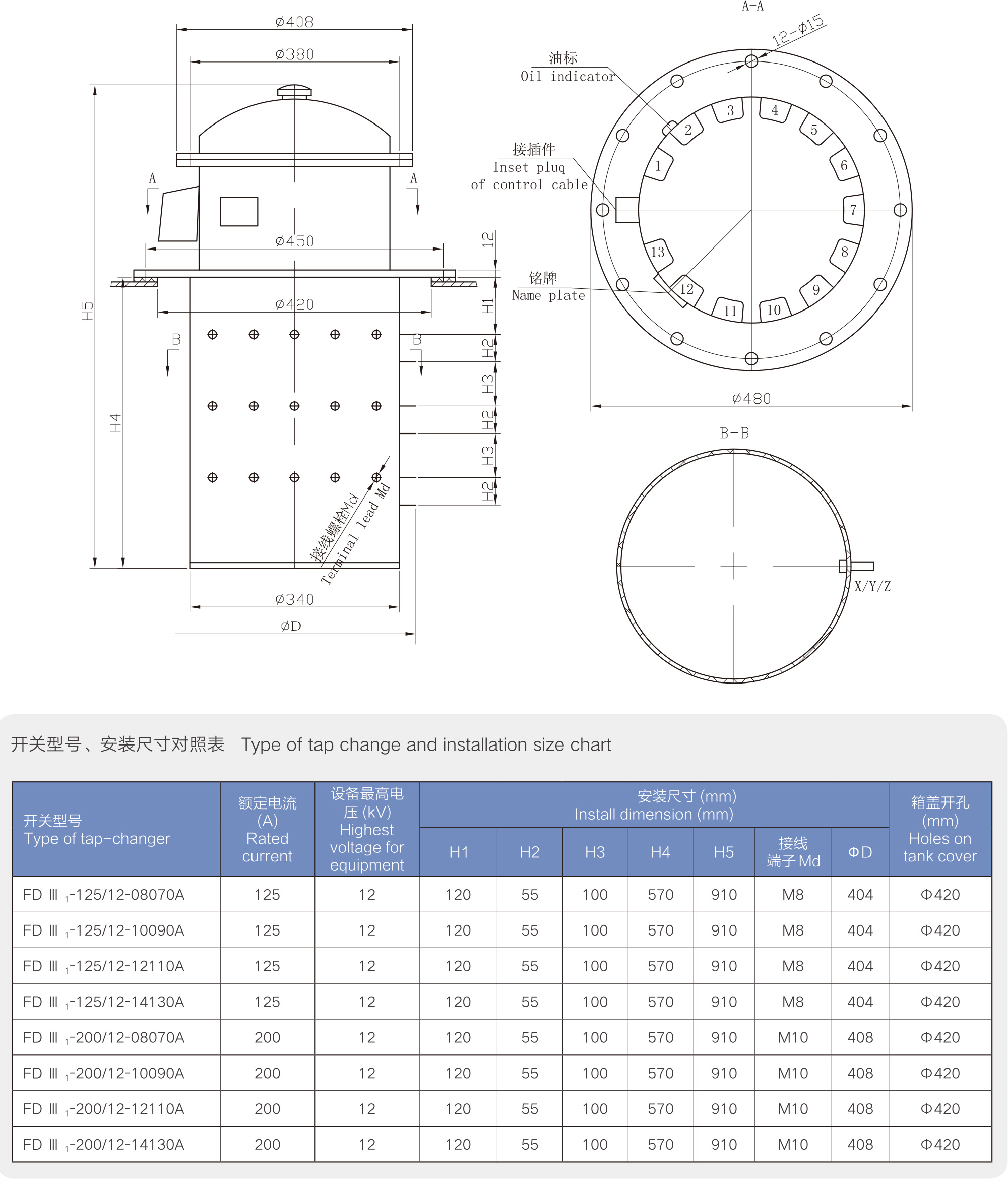

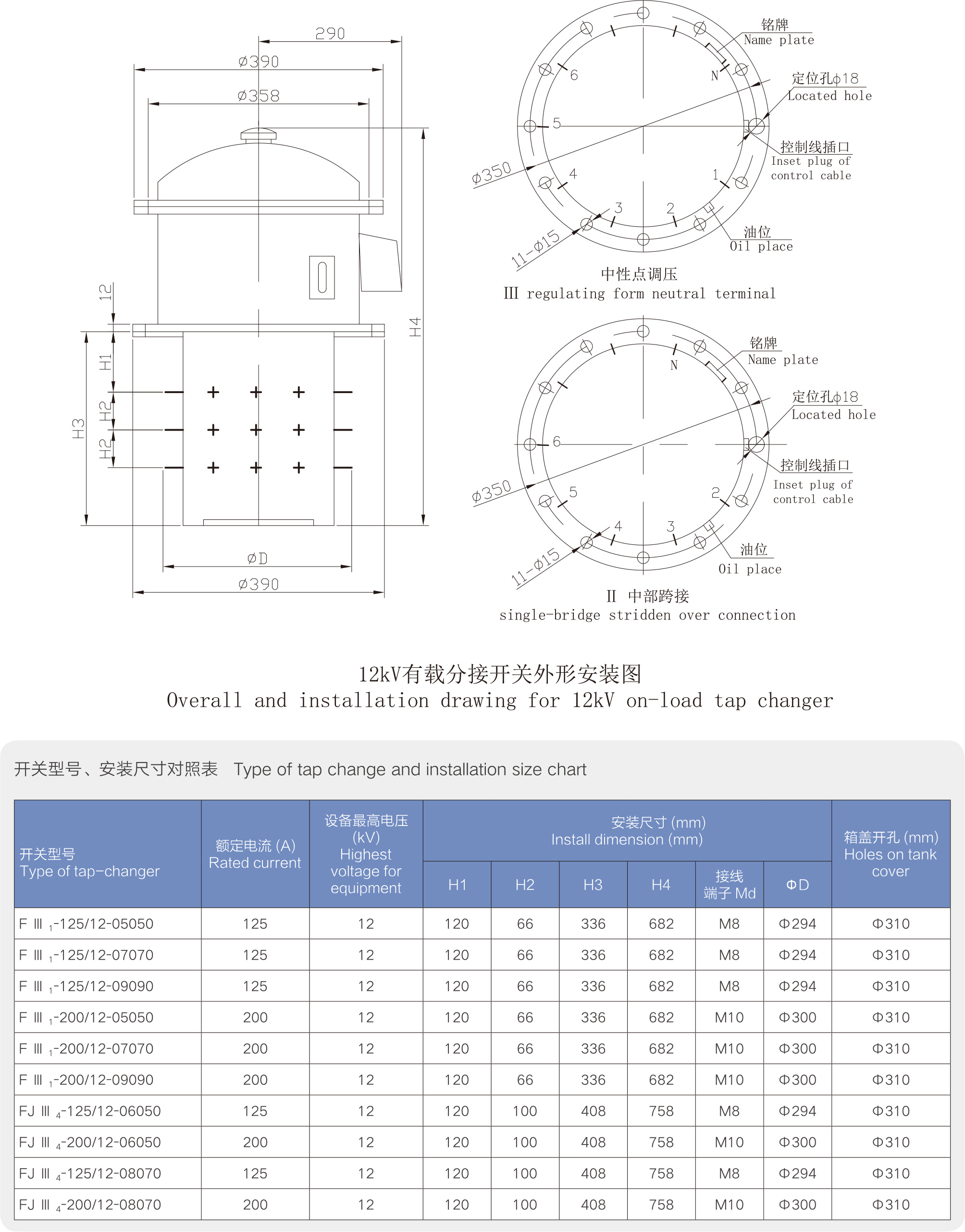

12kV有载分接开关外形安装图
Overall and installation drawing for 12kV on-load tap-changer
12kV有载分接开关线端调压、中部跨接外形安装图
Overall and installation drawing for 12kV line terminal voltage regulation on-load tap-changer
12kV(级电压1000V)有载分接开关中性点调压外形安装图
Overall diagram for 12kV(Step Voltage 1,000V) Neutral point regulation on-load tap-changer
开关型号带A表示开关最大级电压为1000
Vo A-stand for the max. step voltage is 1000 V

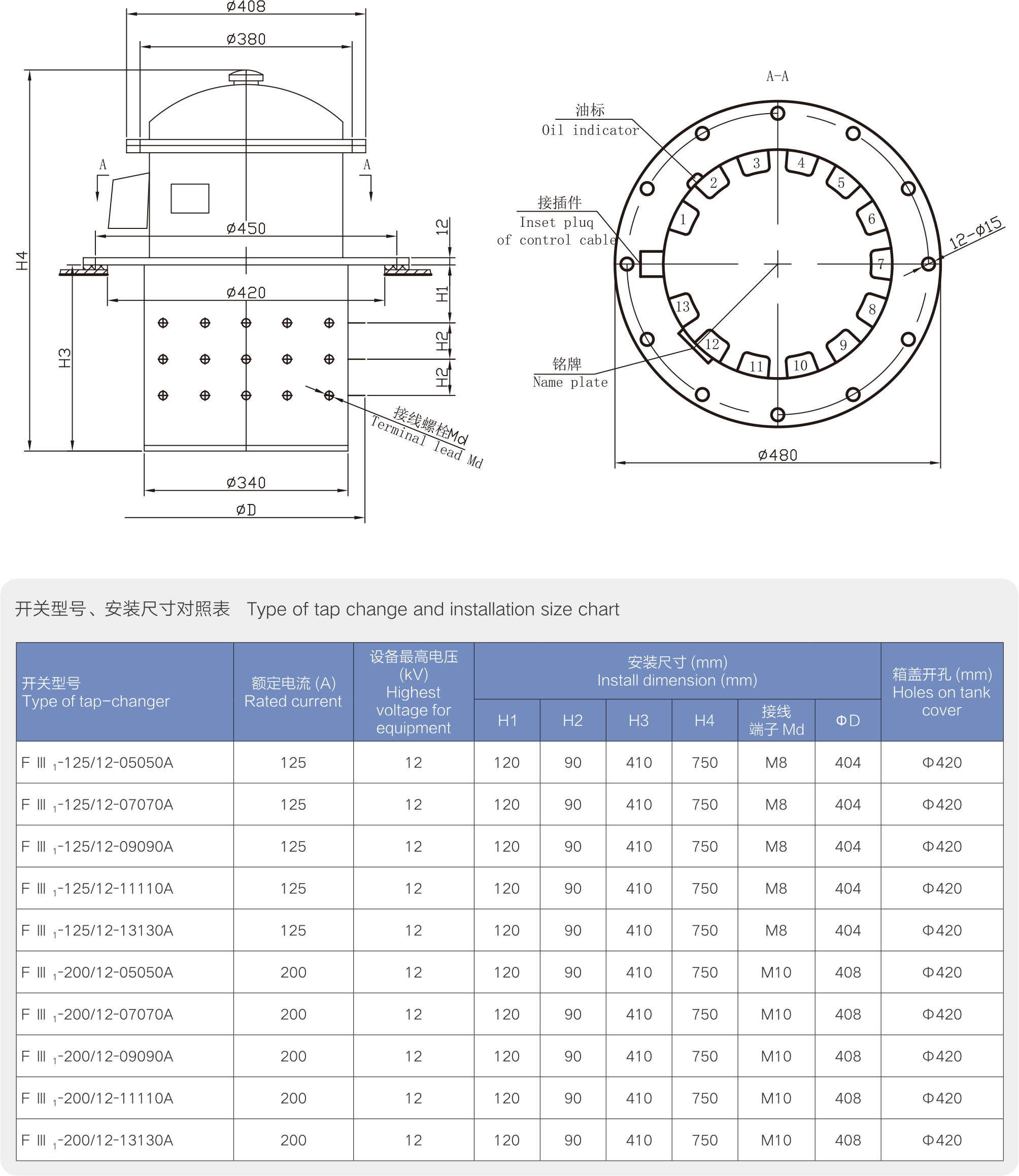

12kV(级电压1000V)有载分接开关线端调压外形安装图
Overall and installation drawing for 12kV line terminal voltage regulation on-load tap-changer
1.开关型号带A表示开关最大级电压为1000V;
2.10kV有载开关控制器电缆配长15m.
1.A-stand for the max. step voltage is 1000 V:
2.The length of the cable for 1 0kV on-load tap-changer is 15 Meters

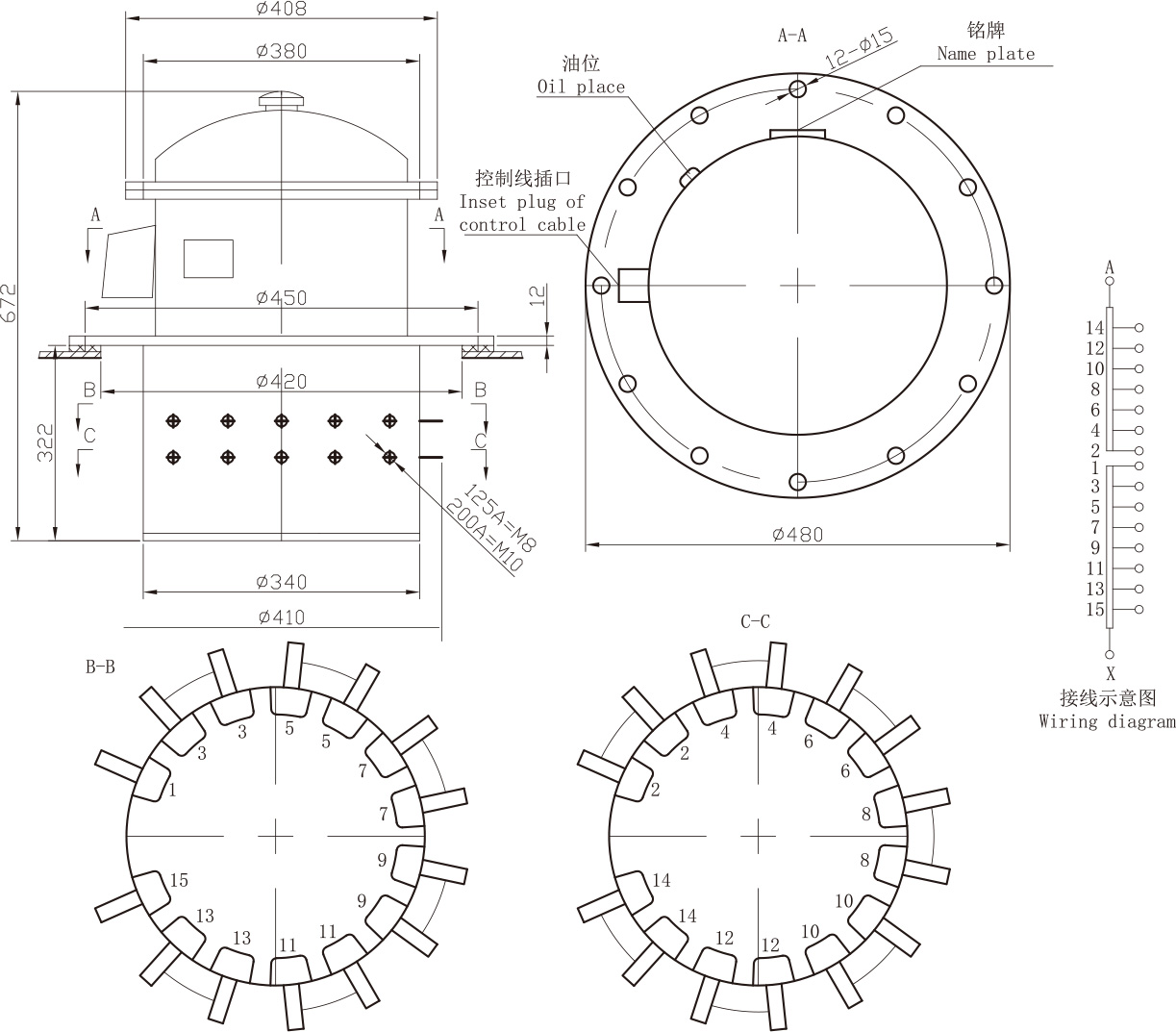

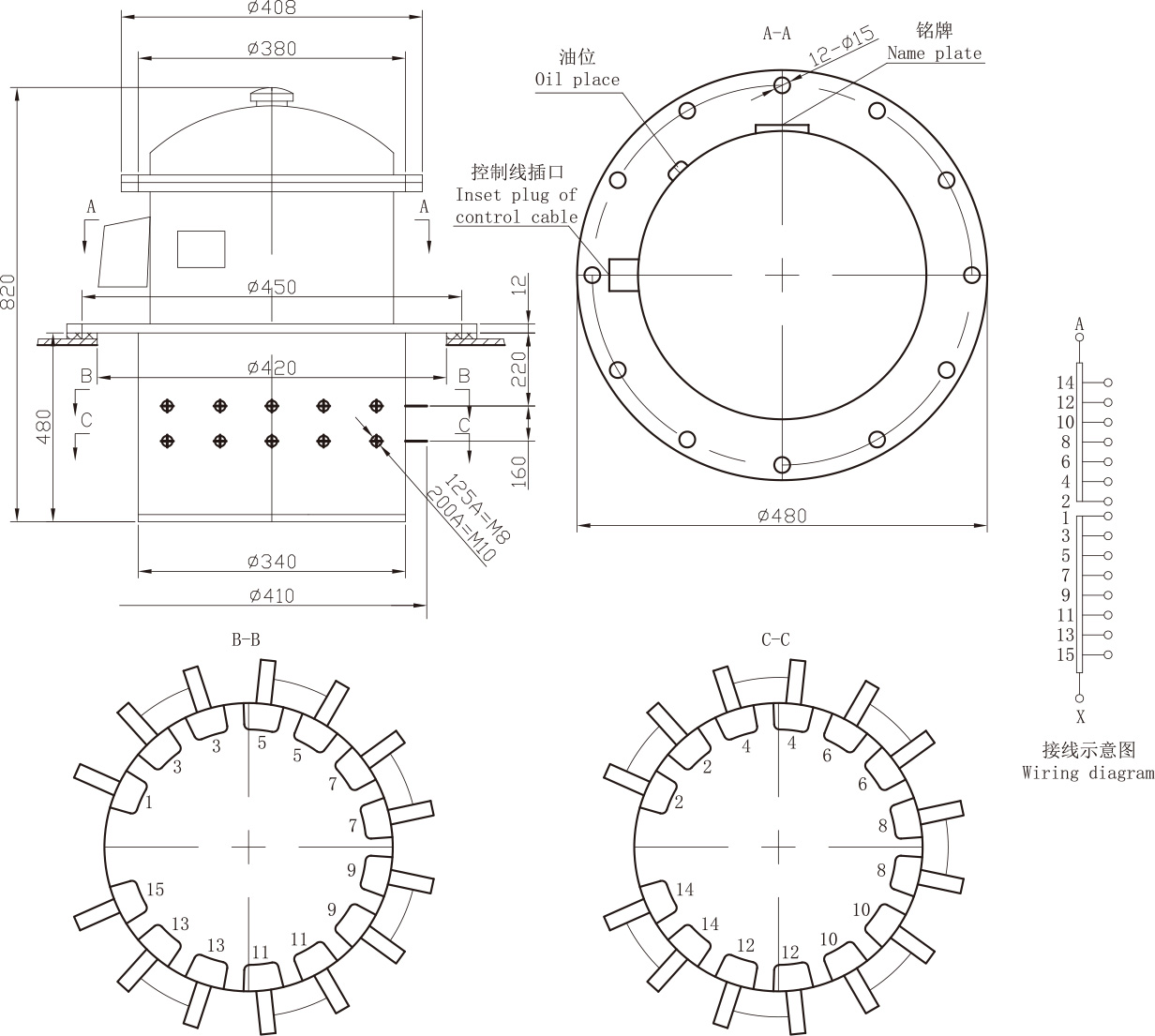

消弧线圈用有载分接开关
The on-load tap-changer are applicable to arc suppression coil
额定电流200A及以下.设备最高电压12kV, 40.5kV.分接位置数7-14级。
It's rated current is 200A and below， the highest voltage of equipment is 12kV and 40.5kV, numbe fo the operation
position 7-14.
FJ 1, -125--200112-15140A
FJ 11-125-y200/40.5-15140A

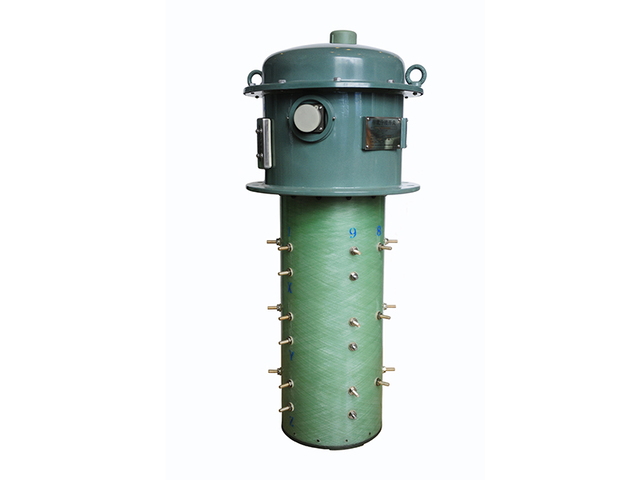

FD III1-400/10-10090有载分接开关
FD III1-400/10-10090 On-load tap-changer

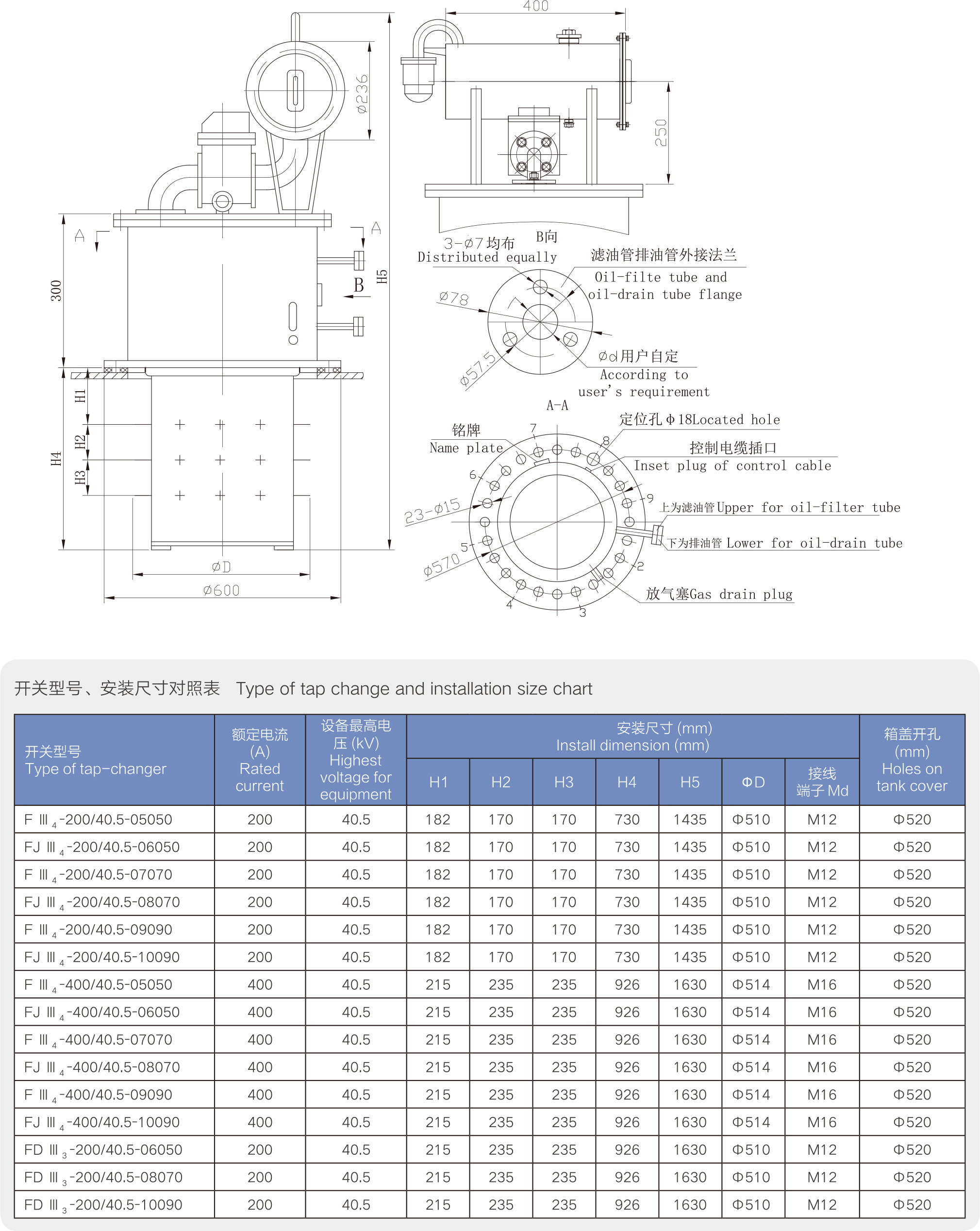

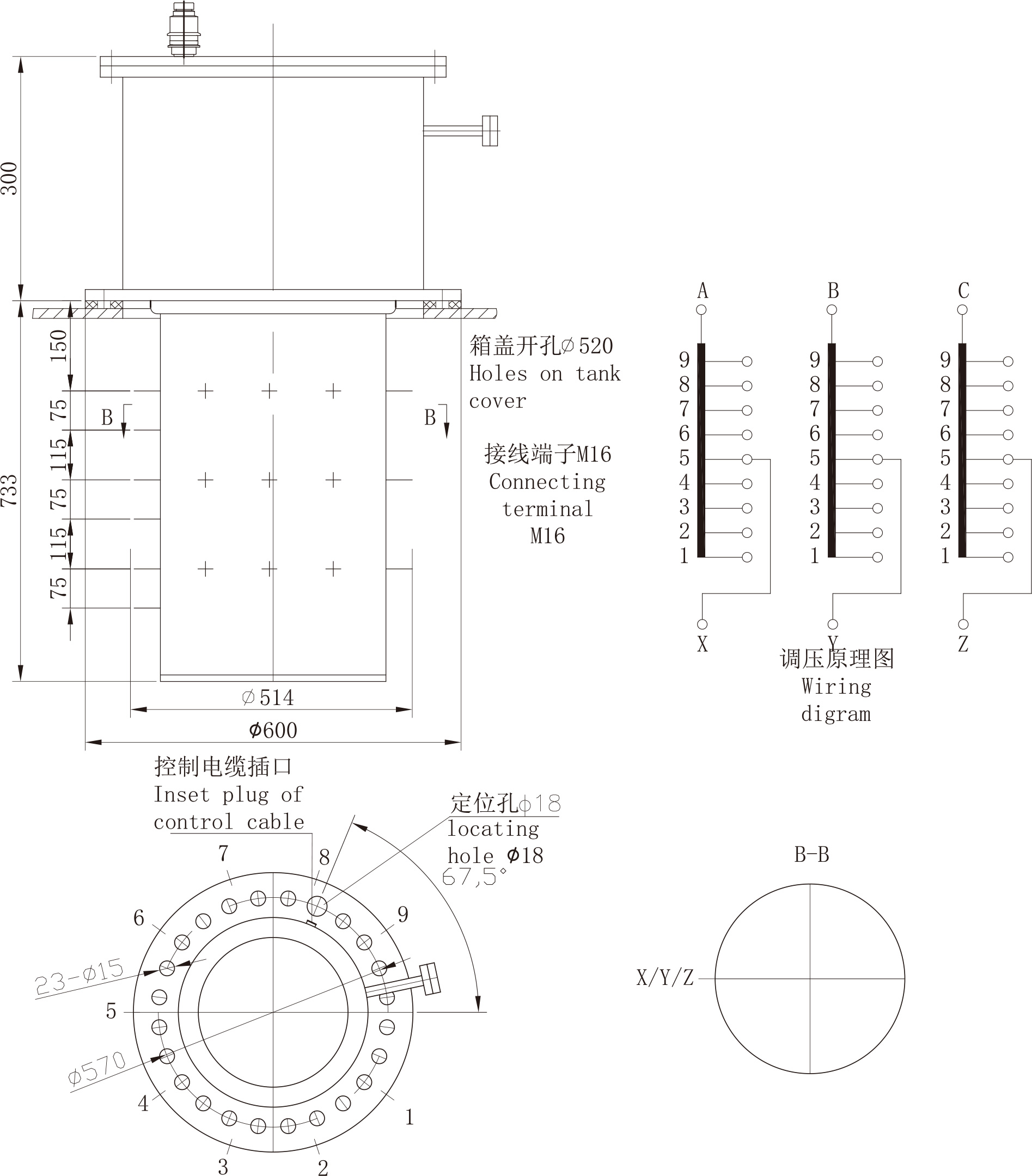

统一设计40.5kV有载分接开关外形及安装图
Overall and installation drawing for 40.5kV on-load tap-changer in uniform design
40.5kV有载开关控制器电缆配长20m
The length of the cable for 40.5kV on-load tap-changer is 20 Meters
