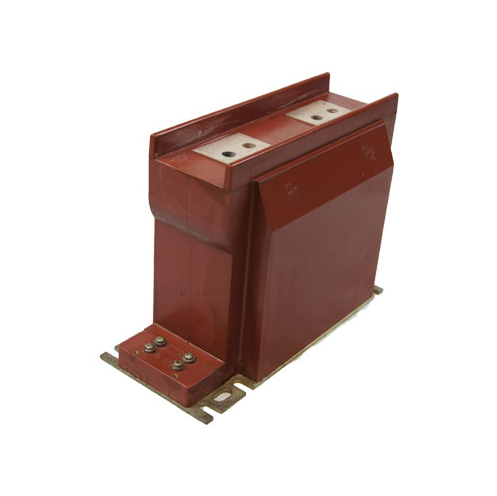

LZZBJ12-10 型电流互感器
一、产品概述：
LZZBJ12-10电流五感器适用于额定频率50Hz~ 额定电压10KV及其以下户内装置的电力系统，用作电气测量和电力保护用，特别适合在柜子宽较窄的中置柜中使用。
Type LZZBJ12-1 0 current transformer is used for metering and protective relaying purposes for installation in
indoor up to 1 OKV rated voltage frequency 50Hz, the current transformer is used for metering and protective relaying
action in indoor and especially is suited for using in the narrow case(fixed) ring-net switch gear.

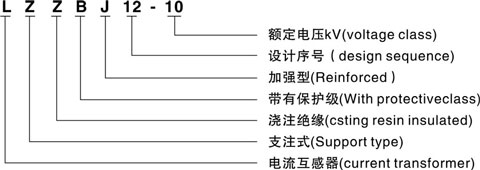

二、产品型号含义：
三、产品技术参数：
1、额定绝缘水平: 11.5/42/75kV;
2、额定频率: 50Hz;
3、额定一次电流: 5-3150A;
4、额定二次电流为5A ， 1A;
5、基本级次组合: 0.5/5P;
6、测量级仪表保安系统: FS<10;
7、5P级准确眼值系数: 5P10;
8、局部放电水平符合GB7354-87标准和IEC185 <<互感器局部放电测试>> ，其视在放电量不大于20PC;
9、负荷的功率因数为0.8 (滞后) ;

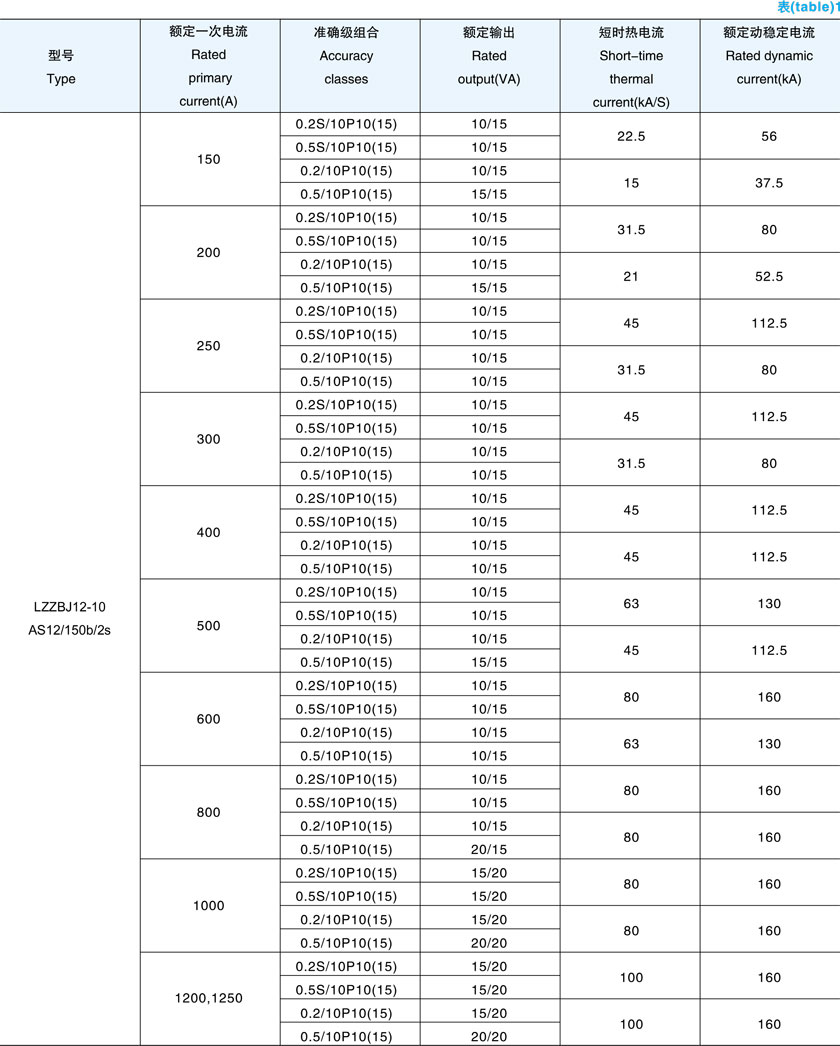

10、准确级次及相应的额定输出，额定适时电流见表1 。
1、Rated insulation level: 11.5/42/75KV;
2、Frequency(Hz):50Hz;
3、Rated primary current:5-3150;
4、Rated secondary current:5A, 1A;
5、Accuracy classes:0.5/5P;
6、Meter rage class safeguard system: Fs<1 0;
7、5P rated accuracy lint factor:5P1 0;
8、The measurement of partial discharge level is in accordance with GB7354-87 and IEC 185 Apparent partial discharge
level not more than 20PC;
9、Power factor:0.8(hysteresis);
10、Rated primary current accuracy classes, rated output and short-time thermal current see table 1.
