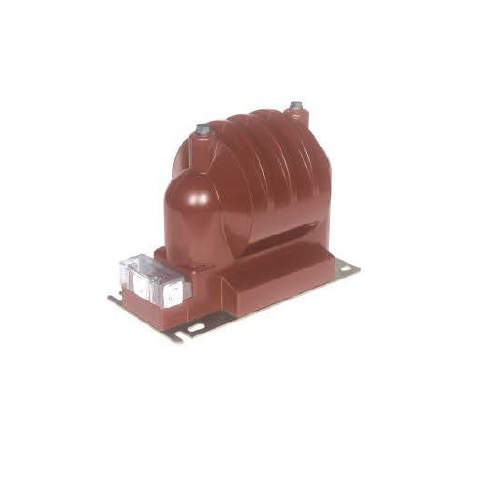

FDGE9 型半封闭干式放电线圈
一、产品概述：
本型放电线圈为环氧树脂真空浇注单相户内半封闭型产晶，其适用于额定频率50Hz、额定电压10kV及以下的电力系统中。与高压并联电容器组并联连接，当电容器组与系统开后，以在5s内将电容器组上的剩余电压降至安全电压。在正常运行时，二次绕组可以做电压指示，用户如有特殊要求时，亦可带剩余电压绕组，起到继电保护作用。
This type of discharge coil is epoxy resin vacuum casting single phase 、idoor semienclosed type product. It is applicable to be used for the power system with high voltage parallel connection capacitor group. When capacitor group cuts off from the system , It can take only five second to reduce the residual voltage of the capacitor group to safe voltage. When operating is normal , the secondary winding is used as voltage indicator. If users have special requirements,it can have relay protection action with residual voltage winding.

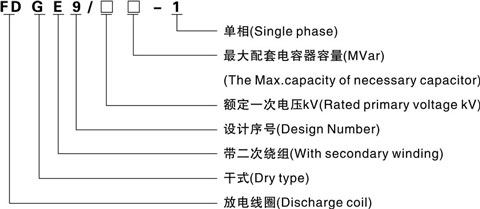

二、产品型号含义：
三、产品结构简介：
本型放电线圈为全封闭结构。铁心采用优质冷轧硅钢片绕制而成，其铁心与一次绕组、二次绕组一起以先进的真空浇注工艺浇注成形。其体积小、重量轻、空载小、抗过电压能力强，使用安装方便，免维护，是替代油浸式放电线圈的理想产品。
This discharge coil fully-enclosed structure. The iron core is made up of high grade cold-rolled silicon-steel sheet by wrapping. Its iron core and primary winding and secondary winding are cast together by advance vacuum casting technics. The product is small volume, littie load strong ability of resistance to over voltage, convenient use and installation and needn't maintenance. It is new product for superseding the oil-immersed type discharge coi l.
四、产品技术参数：
1. 安装位置:户内型;
2.环境温度: -5't阳+40't;
3.海拔:不超过1000m;
4.安装场所无腐蚀性气体、蒸气，无导电性或爆炸性尘埃;
5.安装场所无剧烈的机械振动;
6.相对湿度:月平均相对湿度不超过90% ，日平均相对湿度不超过95%。
1.lnstallation position: indoor tyep;
2.Ambient temperature:-5't阳+40't;
3.Altitude: not more than 1000m;
4.There is no caustic gas, smoke and no dust oftrnsmitting electricity character and blast character;
5.Without smart mechanism vibration in the installation site.
6.Relative humidity: Average relation in the installation of every month is not more than 90%, Average relative humidity of every day is
not more than 95%.
五、产品技术参数：
1.产品执行标准: DUT653-1998<< 电压并联电容器用放电线圈订货技术条件>> ;
2.负荷功率因数: COS 中=0.8(滞后) ;
3.表面爬电距离:大于300mm;

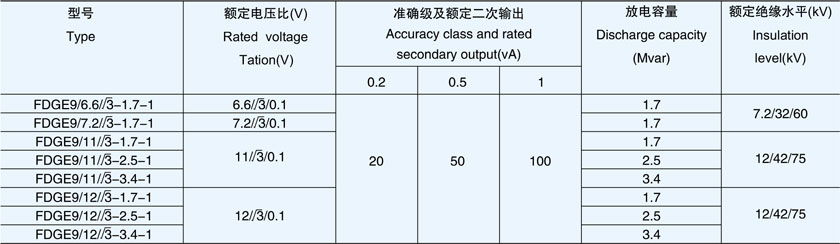

4.基它技术参数见下表:
1.The products are in a∞ordance with DUT653-1998 《 Specification of discharge coils for high voltage parallel connection capacitor for
orde 》stansdrds;
2.Load power factor:COS 中=0.8(lagging);
3.The surface creepage distance: More than 300mm;
4.0ther technical data see following table.

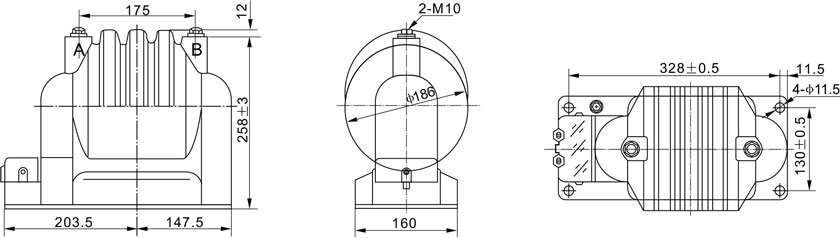

六、产品外形尺寸：
七、订货须知：
1.用户订货时需注明:型号、额定-次电压、额定二次电压、准确级、额定输出、放电容量;
2.若用户需要保护绕组或其它特殊要求请与我厂联系。
1.When ordering, users need supply type, rated primary voltage, rated secondary voltage, accuracy class, rated output,
discharge capacity.
2.If used need protection winding or other special requirements, please contact us.
