JLS-3 、6 、10 、35 型组合互感器

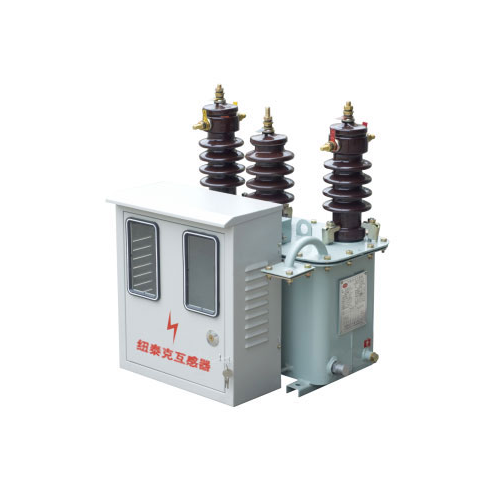

一、产品概述：
本产晶主要由组合互感器和电度表箱两部分组成，组合互感器由两台或三台单相电压互感器和电流互感器组成，用25#变压器油作绝缘介质，一、二次出线端均用瓷套管安装在面板上。电度表箱装在组合直感器侧在，由一只有功电度表和一只无功电度表组成，具有计量精度高、重量轻、安装方便，防窍电等优点。
The product mainly consists two parts combined mutual-inductor and watt-hour meter than. The former is made up two or three single-phase voltage mutual-inductors and current mutual-inductor and current mutual-inductor,which adopts 25# mutual inductor oil as insulating medium and whose primaryand secondary line ends are both installed on the panel by porcelain bushing.Watt-hour meter tank is fixed on the flank of combined mutual-inductor and comprises one active watt-hour meter and reactive watt-hour meter, which has high-precision measurement, light weight, convenient install-ation andelectricity theft resistance.The power measuring tank is applicable to three - phase system net withrated voltageof 6,1 0,35kV and rated frequency of 50Hz.
二、产品型号含义：

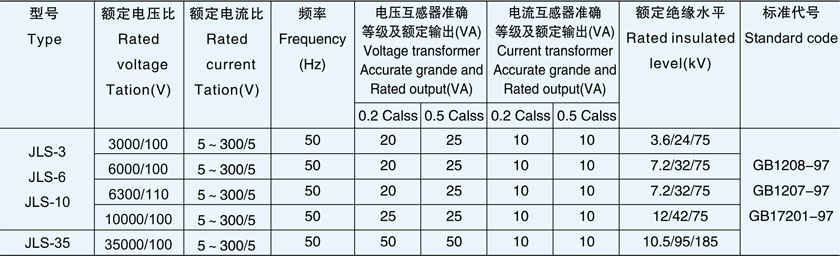

三、产品结构简介：
1.产晶性能符合GB1207-1997、GB1208-1997 õ
2.额定电压: 6kV、10kV、35kV õ
3准确等级: 0.5和0.2级、0.58和0.28级;
4.额定变比:电压比6000/100 1000/100 3500/1 00电流比5 - 300/5(大电流变比可以定作)。
1.The product function is in accordance with GB1207-1997 、GB1208-1997;
2.Rated voltage:6kV,1 OkV,35kV;
3.Accurated grande:0.5 and 0.2 0.58 and 0.28;
4.Rated ratio: ratio-voltage 6000/100 10000/100 35000/100 ratio=current 5 - 300/5(High ratio-current can be set).

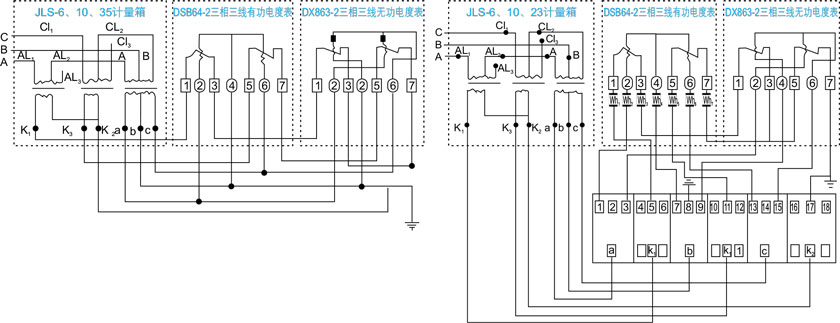

四、接线原理图：

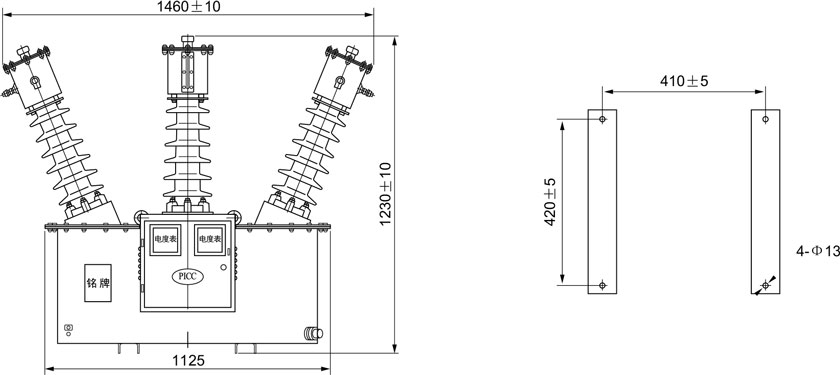

五、产品外形尺寸：
