JDZ10-10型电压互感器
一、产品概述：
本系列电压互感器为单相环氧树脂浇注绝缘全封闭产品，适用于额定频率50Hz或60Hz、额定电压3kV、6kV、10kV的电力系统中， 作电能计量、电压监测和继电保护用。本产品符合IEC186及GB1207-1997 《电压互感器》标准。
The voltage transformers of the types RZL(JDZ)1 0-3,6,1 OA(B)are single phase, casting resin insulted and full enclosed products. They are used for metering electric energy, voltage control and relay protection in the electric non-usefrl-groundd neutral system up to rated frequency 50Hz or 60Hz and rated voltage 3kV, 6kV and 1 OkV. The transformers can be executed according to the standards IEC 186 and GB1207-1997
二、产品型号含义：
三、产品结构简介：
本系列电压互感器为为环氧树脂绝缘全封闭结构，铁心与绕组浇注成一体，体积小，重量轻，二次引线端用出线盒罩住，并有三个不同方向的馈线出口。
These voltage transformers are casting resin insulated, fully enclosed type. The iron core and winding are casting together, It is small and light. The secondary outlet line is wrapped by outlet box and has three exits with different direction feed lines.
四、产品技术参数：
1.产品标准: GB1207-1997《电压互感器》；
2.负载功率因数: COS Φ=0.8(滞后)；
3.产品表面爬电比距满足Ⅱ级污秽等级;

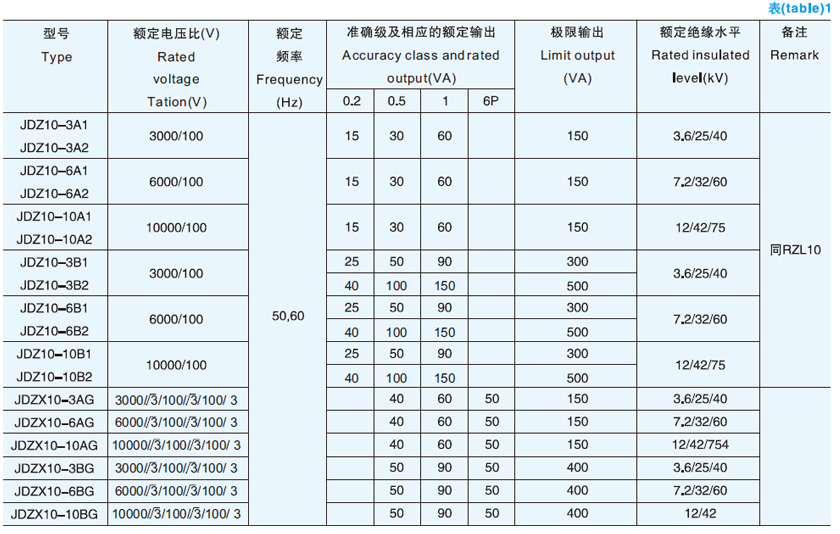

4其它技术参数见下表。
1.The voltage transformers are in accordance with GB1207-1997 《Voltagetransformer》standards;
2.Power factor of 10ad:COSΦ＝0.8(Iagging);
3.Surface creepage distance:the product accords with the request of Ⅱclass;
五、产品外形尺寸：
