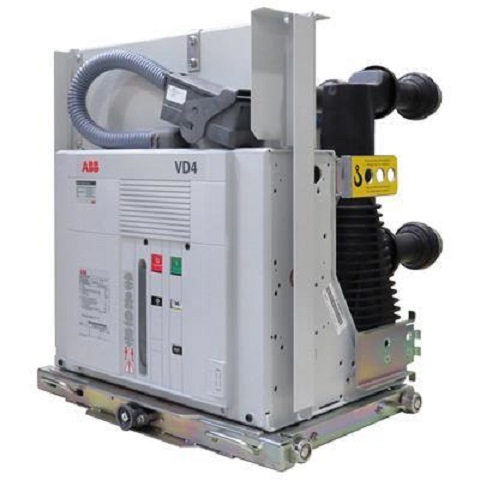

ABB户内真空断路器 VD4/W 12.12.25
| 型号 | 规格型号 | 额定电压 [kV] | 额定电流 [A] | 额定短路电流[kA] |
| VD4/W 12kV | VD4/W 12.06.25 | 12 | 630 | 25 |
| VD4/W 12kV | VD4/W 12.06.32 | 12 | 630 | 31.5 |
| VD4/W 12kV | VD4/W 12.12.25 | 12 | 1250 | 25 |
| VD4/W 12kV | VD4/W 12.12.32 | 12 | 1250 | 31.5 |
| VD4/W 12kV | VD4/W 12.32.25 | 12 | 3150 | 25 |
| VD4/W 12kV | VD4/W 12.32.32 | 12 | 3150 | 31.5 |
| VD4/W 12kV | VD4/W 12.32.40 | 12 | 3150 | 40 |
| VD4/W 12kV | VD4/W 12.40.25 | 12 | 4000 | 25 |
| VD4/W 12kV | VD4/W 12.40.32 | 12 | 4000 | 31.5 |
| VD4/W 12kV | VD4/W 12.40.40 | 12 | 4000 | 40 |
| VD4/W 17.5kV | VD4/W 17.06.25 | 17.5 | 630 | 25 |
| VD4/W 17.5kV | VD4/W 17.06.32 | 17.5 | 630 | 31.5 |
| VD4/W 17.5kV | VD4/W 17.12.25 | 17.5 | 1250 | 25 |
| VD4/W 17.5kV | VD4/W 17.12.32 | 17.5 | 1250 | 31.5 |
| VD4/W 17.5kV | VD4/W 17.40.25 | 17.5 | 4000 | 25 |
| VD4/W 17.5kV | VD4/W 17.40.32 | 17.5 | 4000 | 31.5 |
| VD4/W 17.5kV | VD4/W 17.40.40 | 17.5 | 4000 | 40 |
