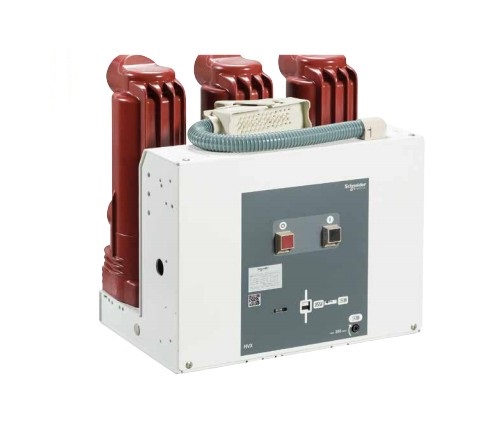

施耐德户内真空断路器 EVX12-50-12E275
| 型号 | 规格型号 | 相间距[mm] | 额定电压 [kV] | 额定电流 [A] | 额定短路电流[kA] |
| EVX 12kV | EVX12-25-06E | 150/210/275 | 12 | 630 | 25 |
| EVX 12kV | EVX12-25-12E | 150/210 | 12 | 1250 | 25 |
| EVX 12kV | EVX12-25-16E | 150/275 | 12 | 1600 | 25 |
| EVX 12kV | EVX12-25-20E | 150/275 | 12 | 2000 | 25 |
| EVX 12kV | EVX12-25-25E | 275 | 12 | 2500 | 25 |
| EVX 12kV | EVX12-25-31E | 275 | 12 | 3150 | 25 |
| EVX 12kV | EVX12-25-40E | 275 | 12 | 4000 | 25 |
| EVX 12kV | EVX12-31-06E | 150/210/275 | 12 | 630 | 31.5 |
| EVX 12kV | EVX12-31-12E | 150/210 | 12 | 1250 | 31.5 |
| EVX 12kV | EVX12-31-16E | 210/275 | 12 | 1600 | 31.5 |
| EVX 12kV | EVX12-31-20E | 210/275 | 12 | 2000 | 31.5 |
| EVX 12kV | EVX12-31-25E | 275 | 12 | 2500 | 31.5 |
| EVX 12kV | EVX12-31-31E | 275 | 12 | 3150 | 31.5 |
| EVX 12kV | EVX12-31-40E | 275 | 12 | 4000 | 31.5 |
| EVX 12kV | EVX12-40-12E | 210/275 | 12 | 1250 | 40 |
| EVX 12kV | EVX12-40-16E | 210/275 | 12 | 1600 | 40 |
| EVX 12kV | EVX12-40-20E | 210/275 | 12 | 2000 | 40 |
| EVX 12kV | EVX12-40-25E | 275 | 12 | 2500 | 40 |
| EVX 12kV | EVX12-40-31E | 275 | 12 | 3150 | 40 |
| EVX 12kV | EVX12-40-40E | 275 | 12 | 4000 | 40 |
| EVX 12kV | EVX12-50-12E | 210/275 | 12 | 1250 | 50 |
| EVX 12kV | EVX12-50-16E | 210/275 | 12 | 1600 | 50 |
| EVX 12kV | EVX12-50-20E | 210/275 | 12 | 2000 | 50 |
| EVX 12kV | EVX12-50-25E | 275 | 12 | 2500 | 50 |
| EVX 12kV | EVX12-50-31E | 275 | 12 | 3150 | 50 |
| EVX 12kV | EVX12-50-40E | 275 | 12 | 4000 | 50 |
