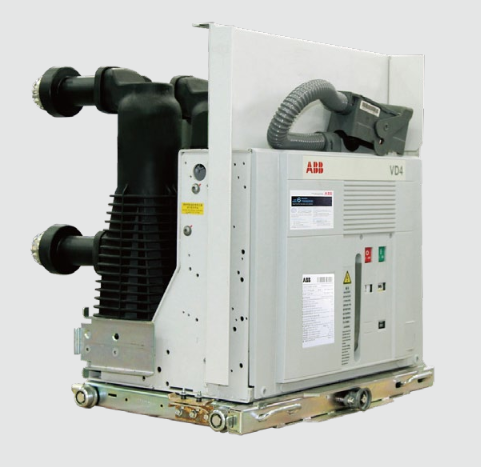

ABB户内真空断路器 VD4/P 12.06.32
| 类型 | 规格型号 | 额定电压 [kV] | 额定电流(A) | 额定短路电流(kA) | 相间距 [mm] |
| VD4/HE | VD4/P 12.06.25 P150 | 12 | 630 | 25 | 150 |
| VD4/HE | VD4/P 12.06.25 P210 | 12 | 630 | 25 | 210 |
| VD4/HE | VD4/P 12.06.32 P150 | 12 | 630 | 31.5 | 150 |
| VD4/HE | VD4/P 12.06.32 P210 | 12 | 630 | 31.5 | 210 |
| VD4/HE | VD4/P 12.12.25 P150 | 12 | 1250 | 25 | 150 |
| VD4/HE | VD4/P 12.12.25 P210 | 12 | 1250 | 25 | 210 |
| VD4/HE | VD4/P 12.12.32 P150 | 12 | 1250 | 31.5 | 150 |
| VD4/HE | VD4/P 12.12.32 P210 | 12 | 1250 | 31.5 | 210 |
| VD4/HE | VD4/P 12.12.40 P210 | 12 | 1250 | 40 | 210 |
| VD4/HE | VD4/P 12.12.40 P275 | 12 | 1250 | 40 | 275 |
| VD4/HE | VD4/P 12.16.25 P210 | 12 | 1600 | 25 | 210 |
| VD4/HE | VD4/P 12.16.25 P275 | 12 | 1600 | 25 | 275 |
| VD4/HE | VD4/P 12.16.32 P210 | 12 | 1600 | 31.5 | 210 |
| VD4/HE | VD4/P 12.16.32 P275 | 12 | 1600 | 31.5 | 275 |
| VD4/HE | VD4/P 12.16.40 P210 | 12 | 1600 | 40 | 210 |
| VD4/HE | VD4/P 12.16.40 P275 | 12 | 1600 | 40 | 275 |
| VD4/HE | VD4/P 12.20.25 P210 | 12 | 2000 | 25 | 210 |
| VD4/HE | VD4/P 12.20.25 P275 | 12 | 2000 | 25 | 275 |
| VD4/HE | VD4/P 12.20.32 P210 | 12 | 2000 | 31.5 | 210 |
| VD4/HE | VD4/P 12.20.32 P275 | 12 | 2000 | 31.5 | 275 |
| VD4/HE | VD4/P 12.20.40 P210 | 12 | 2000 | 40 | 210 |
| VD4/HE | VD4/P 12.20.40 P275 | 12 | 2000 | 40 | 275 |
| VD4/HE | VD4/P 12.25.25 P275 | 12 | 2500 | 25 | 275 |
| VD4/HE | VD4/P 12.25.32 P275 | 12 | 2500 | 31.5 | 275 |
| VD4/HE | VD4/P 12.25.40 P275 | 12 | 2500 | 40 | 275 |
| VD4/HE | VD4/P 12.32.25 P275 | 12 | 3200 | 25 | 275 |
| VD4/HE | VD4/P 12.32.32 P275 | 12 | 3200 | 31.5 | 275 |
| VD4/HE | VD4/P 12.32.40 P275 | 12 | 3200 | 40 | 275 |
| VD4/HE | VD4/P 12.40.25 P275 | 12 | 4000 | 25 | 275 |
| VD4/HE | VD4/P 12.40.32 P275 | 12 | 4000 | 31.5 | 275 |
| VD4/HE | VD4/P 12.40.40 P275 | 12 | 4000 | 40 | 275 |
